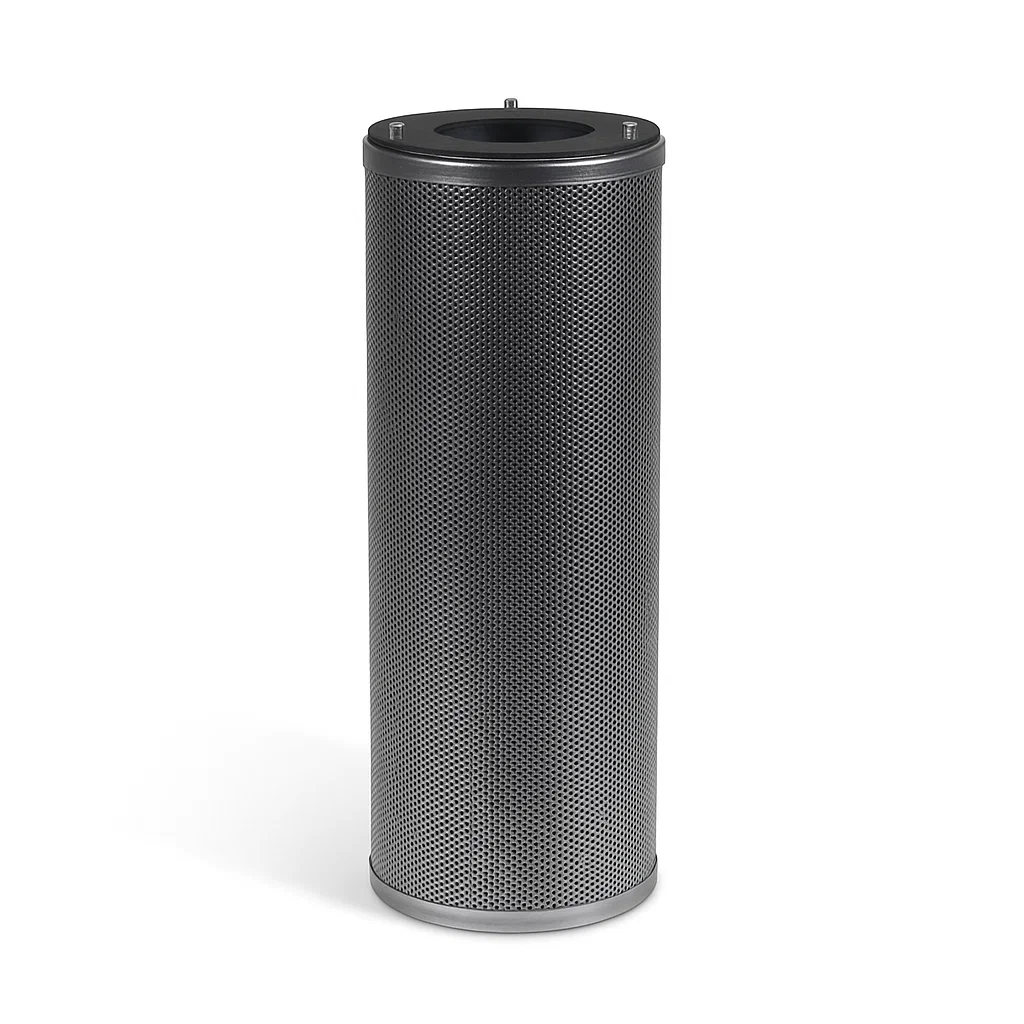

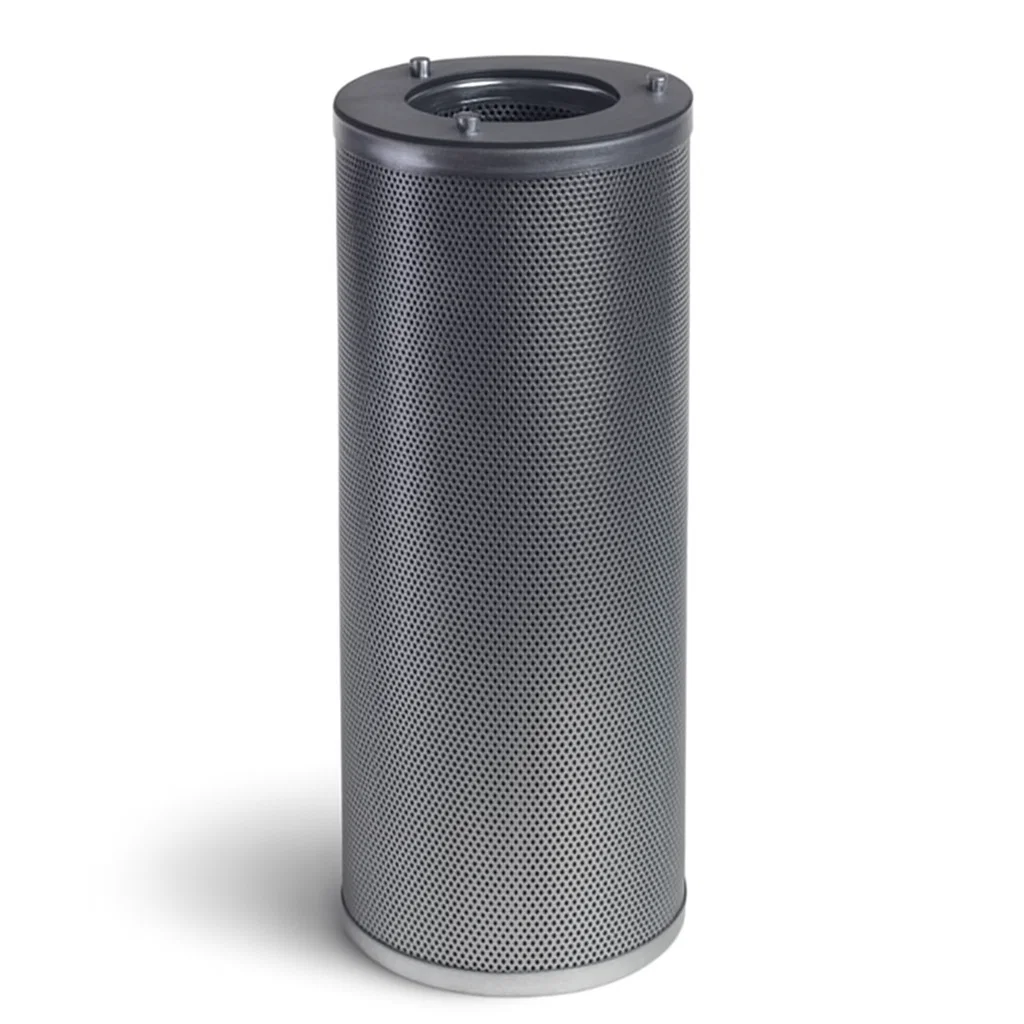

Active Carbon Filter Cartridge Type 2600 – 145 × 450 mm – 2.2 kg carbon – Bayonet connection – Galvanised steel – Capacity 156 m³/h
Type 2600 activated carbon filter cartridge with bayonet coupling. Capacity 156 m³/h. Galvanised steel housing. 2.2 kg pellet carbon. Dimensions 145 × 450 mm. For odour and VOC removal.
Read the full product description
Active Carbon Filter Cartridge Type 2600 – 145 × 450 mm – Capacity 156 m³/h
The Type 2600 active carbon filter is a powerful industrial filter for odour and VOC removal in, among other things, the hospitality industry, kitchens and industrial ventilation. Equipped with a galvanised steel housing and a leak-proof 3-point bayonet coupling.
Technical specifications
- ✅ Housing: galvanised steel (option: stainless steel or plastic)
- ✅ Connection: 3-point bayonet – leak-proof
- ✅ Dimensions: diameter 145 mm × length 450 mm
- ✅ Filter bed thickness: 25 mm
- ✅ Total weight: 2.8 kg
- ✅ Activated carbon (pellets): 2.2 kg
- ✅ Carbon type: pelletised carbon – optionally with impregnation / Al₂O₃
- ✅ Capacity: technical 200 m³/h, practical 156 m³/h
- ✅ Pressure drop: 78 Pa
- ✅ Contact time: approx. 0.1 s (for plastic variant)
- ✅ Sustainability: wood-based carbon possible (AKFF)
- ✅ Certification: REACH / CLP compliant
Applications
Perfect for use in:
- ✅ Catering extraction systems
- ✅ Industrial odour removal
- ✅ Removal of volatile organic compounds (VOCs)
- ✅ Kitchens, bakeries and other odour-intensive environments
