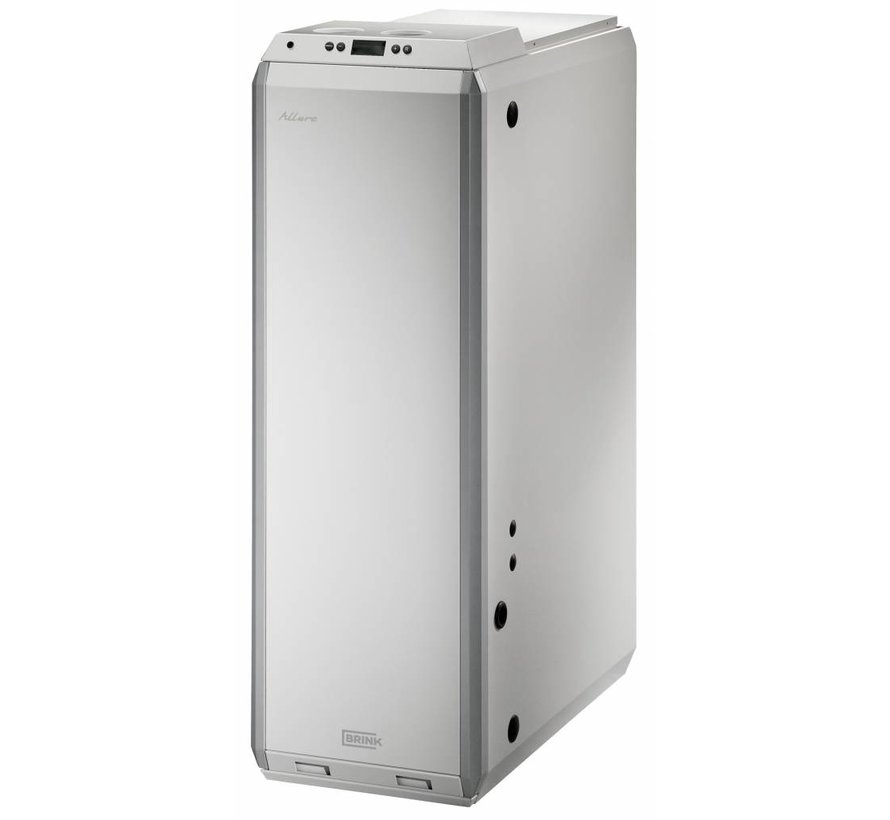

Brink Allure B10 - 16 HRD (1350) | 531501

Suitable for: Brink Allure B10 - 16 HRD (1350) - Determine your own discount - You will receive 1 filter from our house brand hq-filters.co.uk - the most sold brand WTW filter

Read the full product description

Brink Allure B10 - 16 HRD (1350) filter /
return air box Allure, Downflow

This heat recovery filter set is manufactured in-house by hq-filters.nl in accordance with filter standard ISO 16890, which is equivalent to the original filters.
Our in-house production enables us to offer high-quality product alternatives at attractive prices.

This set consists of: 1 filter - Dimensions: 445 x 365 mm.

Suitable for: Brink Allure B10 - 16 HRD (1350)

Filter class: G3 - EN779:2012 | Iso coarse 50% - ISO 16890

PLEASE NOTE! WITH AN ALLURE DOWNFLOW, THE FILTER IS NOT LOCATED IN THE UNIT.
It is located in one of the filter constructions below:
- Open return filter cassette
- Allure return air filter boxes (order 2 pieces)
- Filter cassette side connection, (short or long)

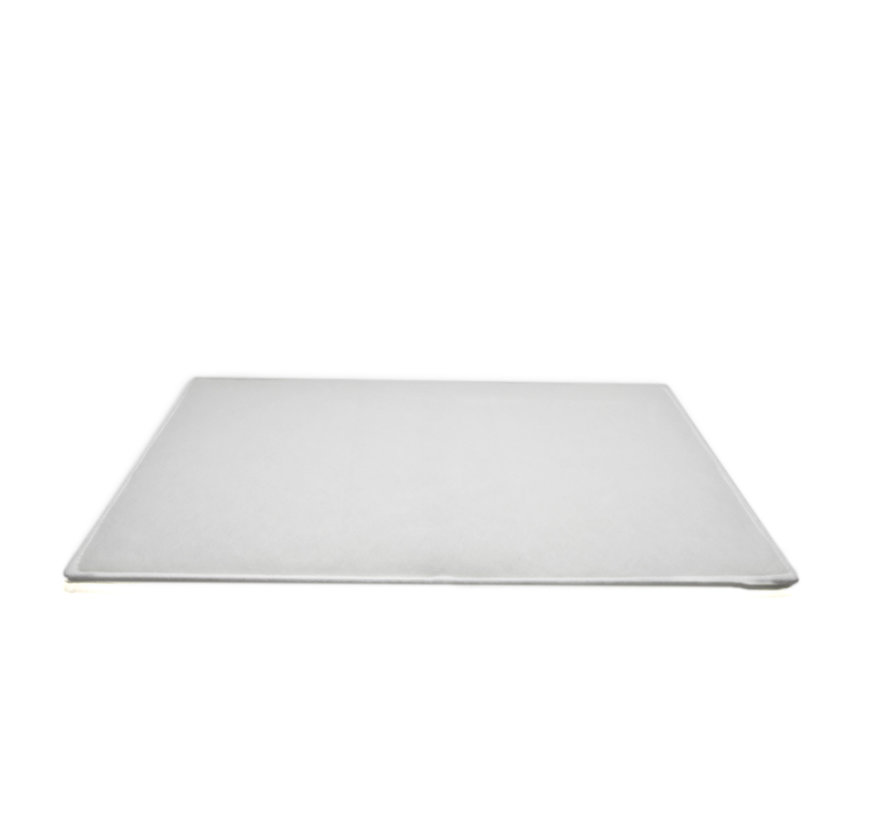

This wire frame filter is located in the Allure B10 HRD open return, Allure B16 HRD open return and in all Allure filter return air boxes.

Type: wire frame filter

Dimensions: 445 x 365 mm.

Brand: hq-filters.nl

Brink no. 531501 - 580521

Purchasing these heat recovery filters brings fresh air from outside into your home. Good ventilation is important for maintaining a healthy indoor climate, but also for preventing dust, dirt, bacteria and mould from accumulating in the ventilation system.
Regular filter changes mean significant energy savings.

The filter standard: EN799:2012 has been replaced by the filter standard: ISO16890 since 1 July 2018.
This classifies filters into so-called ePM categories.
This classification provides an accurate indication of the particle sizes that are filtered out of the air.

PM1 stands for all types of particulate matter smaller than 1 micron (μ = one thousandth of a millimetre):
PM1: 1μ = 0.001 mm
PM2.5: 2.5μ = 0.0025 mm
PM10: 10μ = 0.01 mm
The 'e' in PM1 stands for 'efficiency' and indicates the efficiency of the air filter in capturing PM1.

Based on these values, the standard now divides filters into four groups that filter different dust particles:
ISO Coarse < 50% (sand, fluff, hair)
ISO ePM10 ≥ 50% (pollen, stone dust)
ISO ePM2.5 ≥ 50% (mould spores, toner dust)
ISO ePM1 (combustion particles, nanoparticles, viruses)

You can easily replace the HRV filters for the Brink Allure yourself and install them in your HRV unit.
