Brink Elan 10 filter G3 | 531274

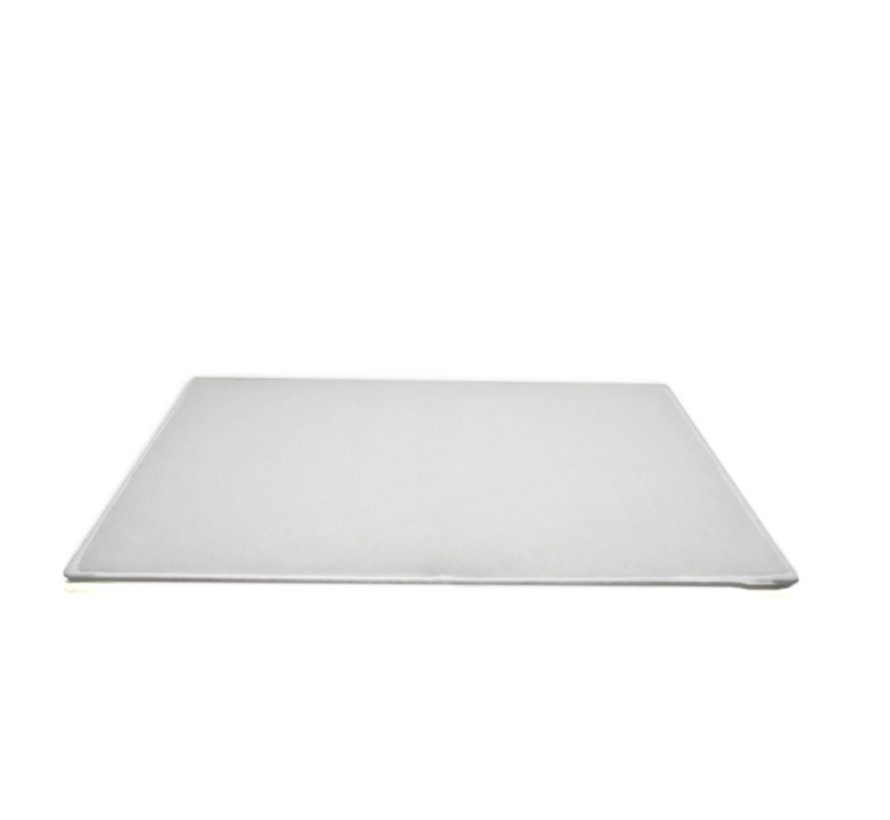

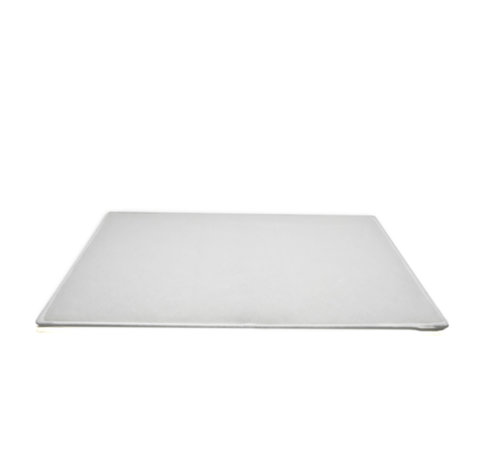

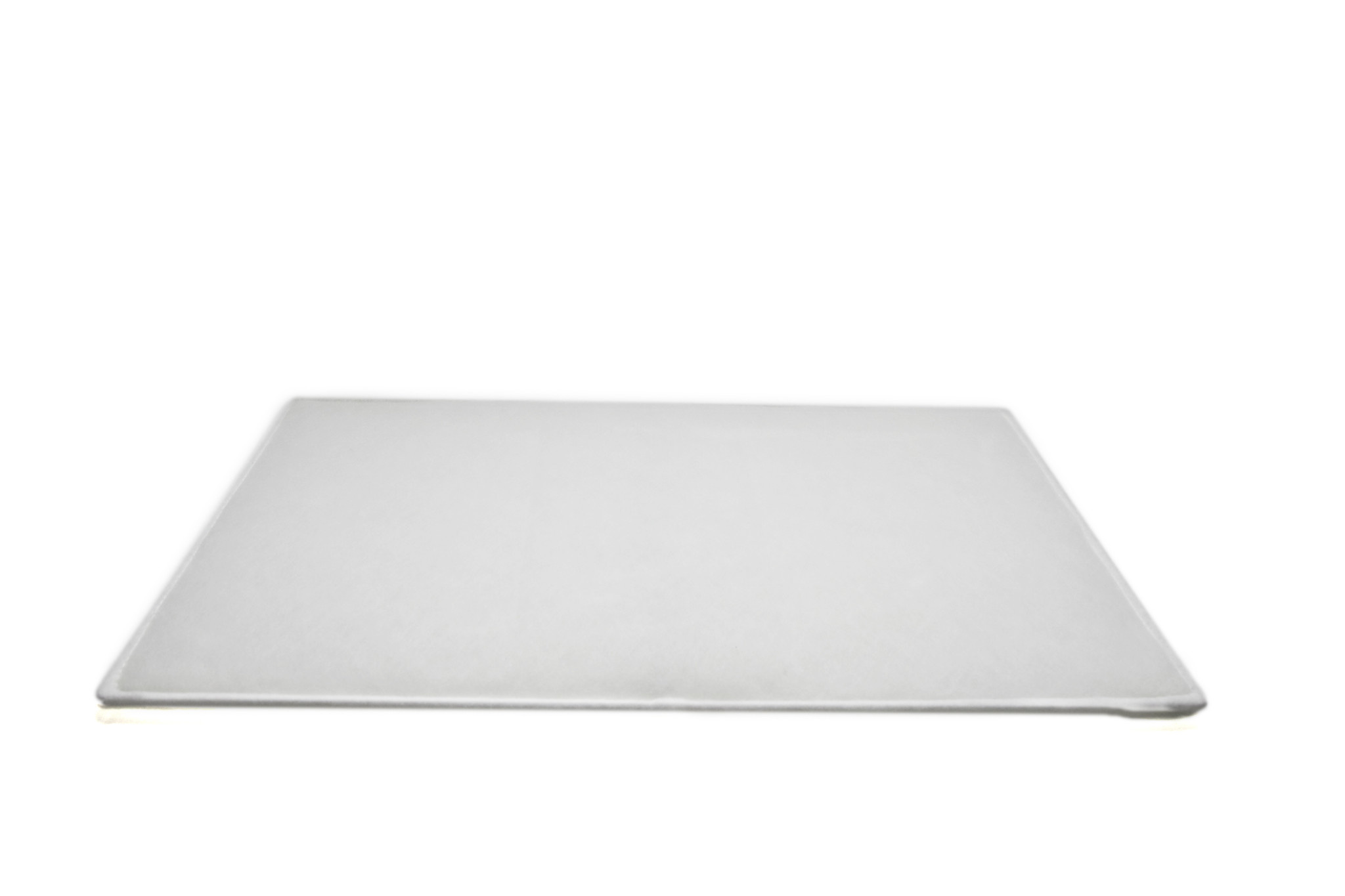

Brink Elan 10 filter G3

This set consists: of 1 filter - Size: 510 x 415 mm.

This wtw filter set is produced in-house by hq-filters.co.uk with the filter standard ISO 16890 , which is equal to the original filters.
With our own production, we can offer high quality product alternatives at attractive prices.

Suitable for:

• 004700 Elan 10 without display
• 0049xx Elan 10 with display

Filter class: G3 - EN779:2012 | Iso coarse 50% - ISO 16890

Type: wire frame filter

Dimensions: 510 x 415 mm.

Brand: hq-filters.co.uk

Brink no. 531274

The filter standard : EN799:2012 has been replaced since 1 July 2018 by the filter standard : ISO16890
Here, filters are classified into so-called ePM categories.
This classification gives an accurate indication of which particle sizes are filtered out of the air.

PM1 stands for all types of particulate matter smaller than 1 micron (μ = one thousandth of a millimetre):
PM1: 1μ = 0.001 mm
PM2.5: 2.5μ = 0.0025 mm
PM10: 10μ = 0.01 mm
The 'e' for PM1 stands for 'efficiency' and indicates the efficiency of the air filter in capturing PM1.

Using these values, the standard now splits filters into four groups that filter different dust particles:
ISO Coarse < 50% (sand, lint, hair)
ISO ePM10 ≥ 50% (pollen, stone dust)
ISO ePM2.5 ≥ 50% (mould spores, toner dust)
ISO ePM1 (combustion particles, nanoparticles, viruses)


For questions, suggestions or special filter requests, call 0513-648364 or email [email protected]
Frequently asked questions about ww filters can be found here

You can easily replace the WTW filters for the Brink Allure yourself and install them in your WTW unit
