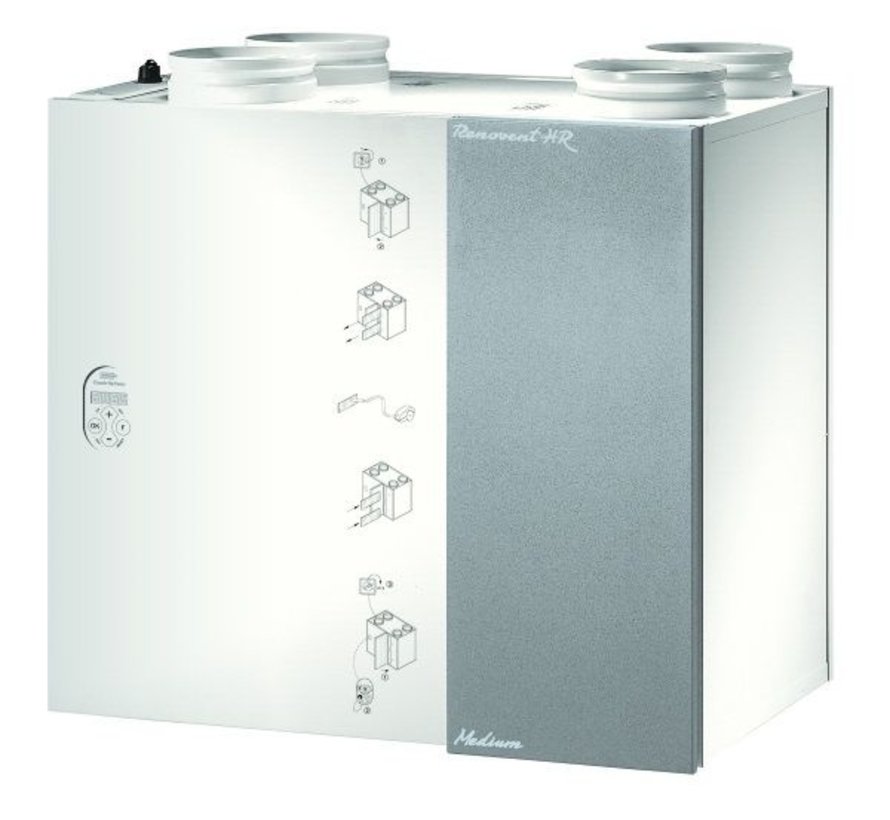

Brink Renovent HR 250/325 medium large | M6 Pollenfilter | 40202
Brink Renovent HR 250/325 medium large | pollen filter 40202

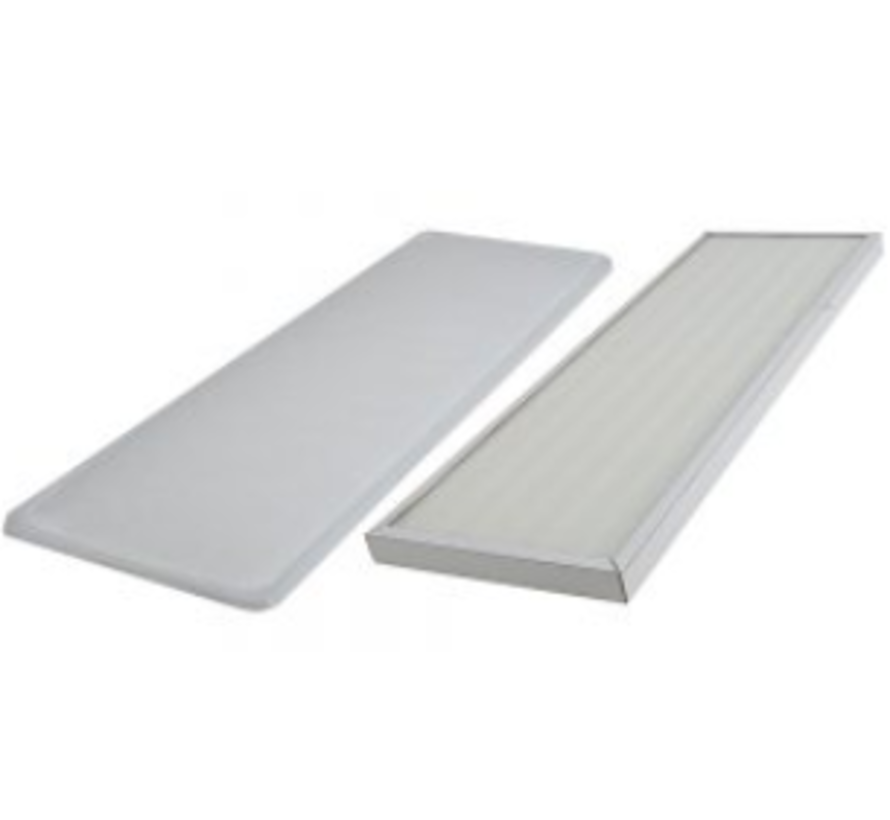

This set consists: of 2 filters - Packed per set, WTW filters must be stored dust-free.
The serial number of your unit starts with 290000, 290002, 290003, 290006, 290010, 290012, 290013, 290016, 290020, 290022, 290023, 290026, 291000, 291002, 291003, 291006, 291010, 291012, 291013, 291016, 291020, 291022, 291023, 291026, 300000, 300002, 300003, 300006, 300010, 300012, 300013, 300016, 300020, 300022, 300023, 300026, 301000, 301002, 301003, 301006, 301010, 301012, 301013, 301016, 301020, 301022, 301023, 301026, 217010, 217020, 218010, 218020, 218000xxxxxx
Suitable for: Renovent HR (CF), Renovent HR Medium and Renovent HR Large without bypass cartridge
Please note! If your unit is later fitted with a bypass, you will need filters with dimensions 500 x 237 mm.
Filter class: G3 - EN779:2012 | Iso coarse >80% - ISO 16890
Filter class: M6 - EN779:2012 | Iso ePM2.5>50-65% | ePM10>60% - ISO 16890
The filter removes 95% of coarser dust particles, as well as bacteria, mould and fungal spores, pollen, toner dust and desert sand.
Type: z-line
Size: 415 x 237 mm.
Brand: hq-filters.co.uk
Brink no. 531101 -531110 - 535004
How to place the particulate filter?
Place the F6 filter at the bottom of the unit with the arrow pointing to the inside of the unit.
You can easily replace the WTW filters for the Brink Renovent HR 250/325 medium large yourself and place them in your WTW unit
