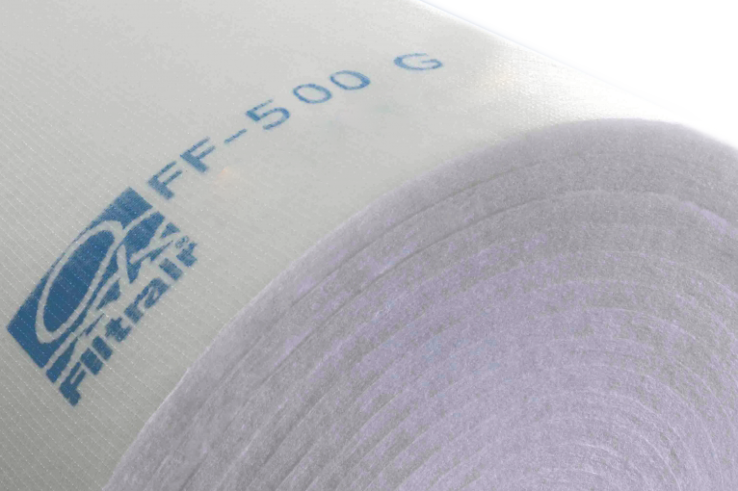

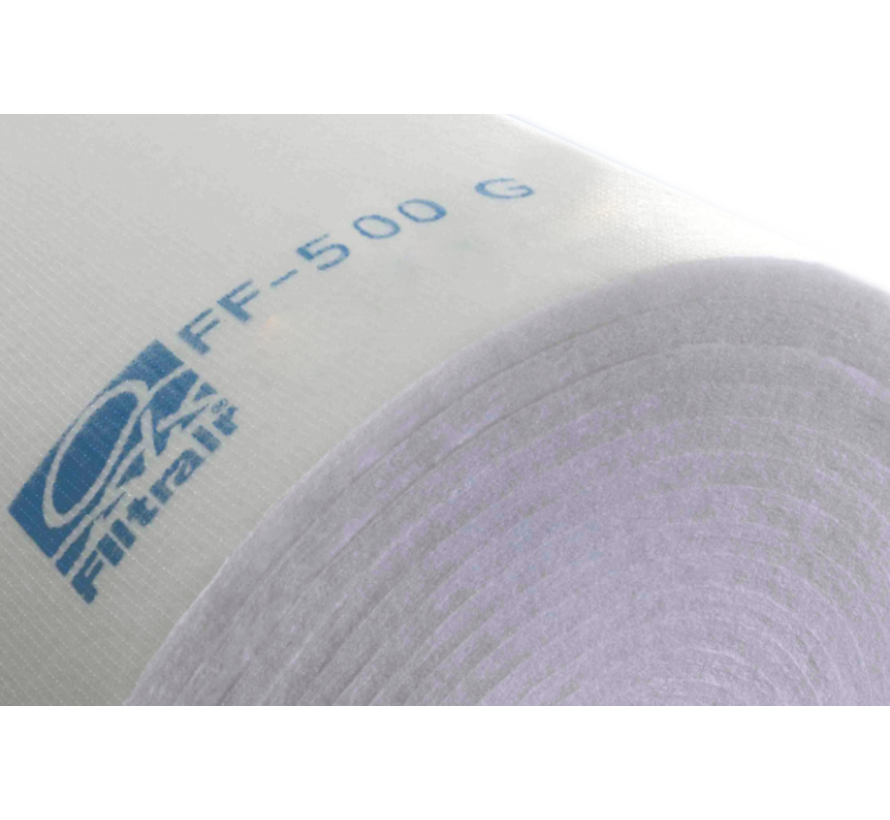

Filtrair FF-500 G Ceiling filter - ISO ePM₁₀ 50% (M5) in various sizes.
Are you looking for a fine filter medium for use in the air supply of your spray booth, for example? The FF-500 G, filter class M5, produced by Filtrair is very suitable for that.
Read the full product description
Ceiling filter FF-500 G - ISO ePM₁₀ 50% (M5) in various sizes.
Roll size: 1000 x 2000 mm., - nominal thickness: 20mm.
Roll size: 2000 x 2000 mm., - nominal thickness: 20mm.
Roll size: 1 x 20 metres, - nominal thickness: 20mm.
Roll size: 2 x 20 metres, - nominal thickness: 20mm.
Do you need customisation? We are happy to provide a customised quotation without obligation.
Send your enquiry to: [email protected]
Fine air filtration media specially designed to be used
in downstream paint spray booths as a final filtration barrier
on all paint-damaging particles from the inlet air
flow. This ceiling filter or diffusion medium provides:
an even air distribution and laminar flow everywhere
the spray booth, when applied in automotive assembly plants
and car repair facilities, as well as in the repair
aftermarket.
The filter media is made of: selected high-quality, unbreakable fibres in amulti-layering technique with progressive density high depth loading to ensure high dust holding capacity with optimum performance at the lowest pressure drop.
This medium is fully thermally bonded and impregnated at full
depth with a special tackifier coating to prevent any
release of fibres and migration of paint-damaging particles
larger than 10 microns due to vibrations in the system, even
under varying temperature conditions.
TECHNICAL DATA
Air velocity : 0.25 - 0.5 m/s
Initial pressure drop : 25 Pa
Recommended final pressure drop : 450 Pa
Dust retention capacity: 750 g/m2 (300 Pa)
Temperature resistance : Up to 100°C
Temperature resistance Short peaks: Up to 180°C
Relative humidity: 100%
FLAMMABILITY RATINGS
FF-500 G complies with European Union standards (e.g. DIN53438-F1) and is self-extinguishing.
It is resistant to evaporated solvents and is manufactured in a 100% silicone-free environment.
