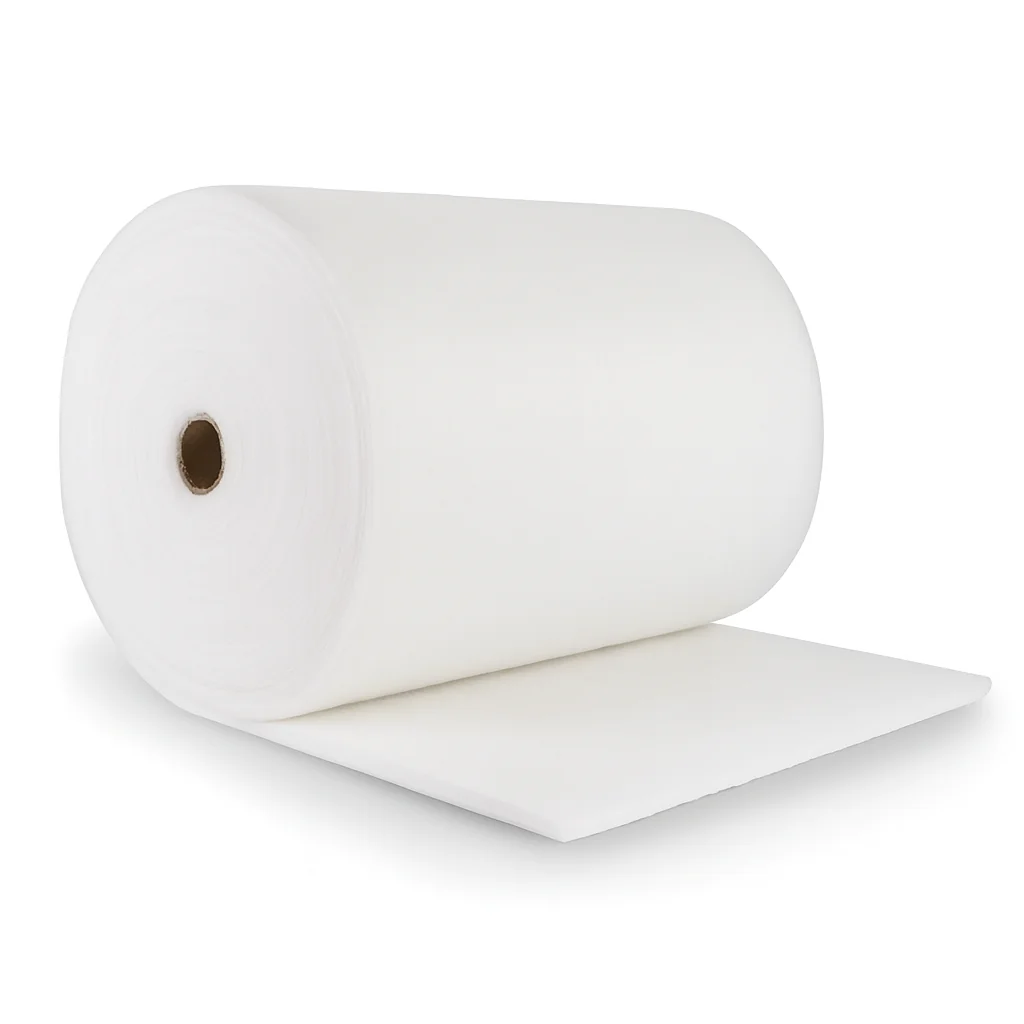

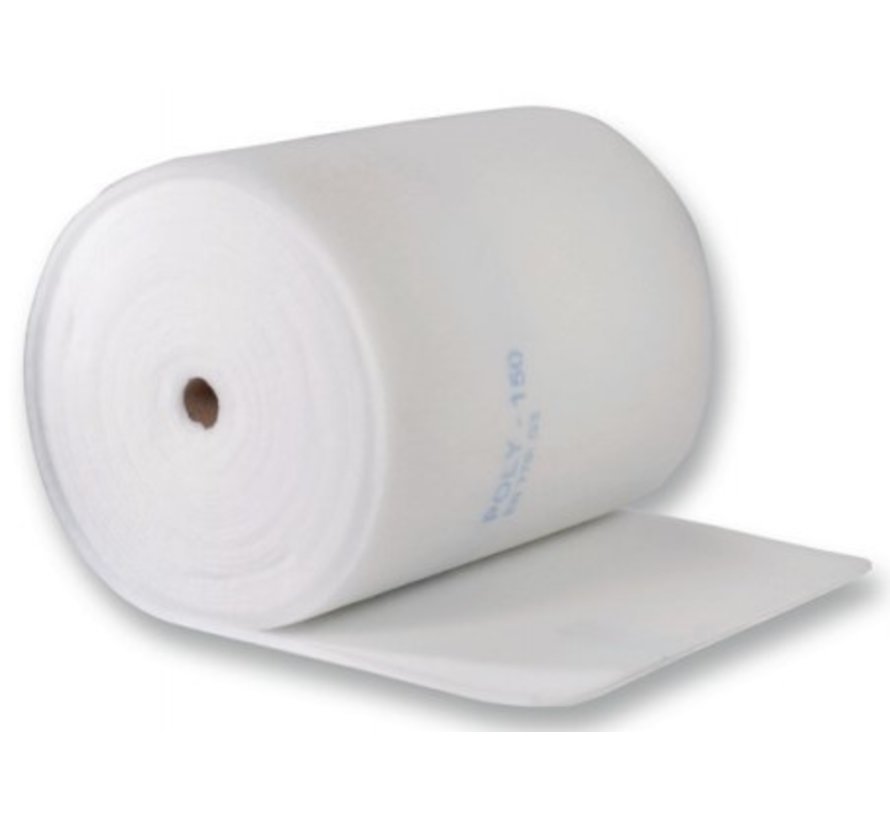

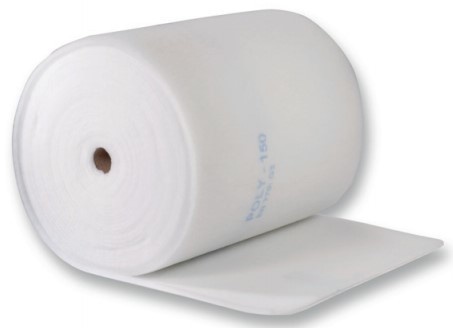

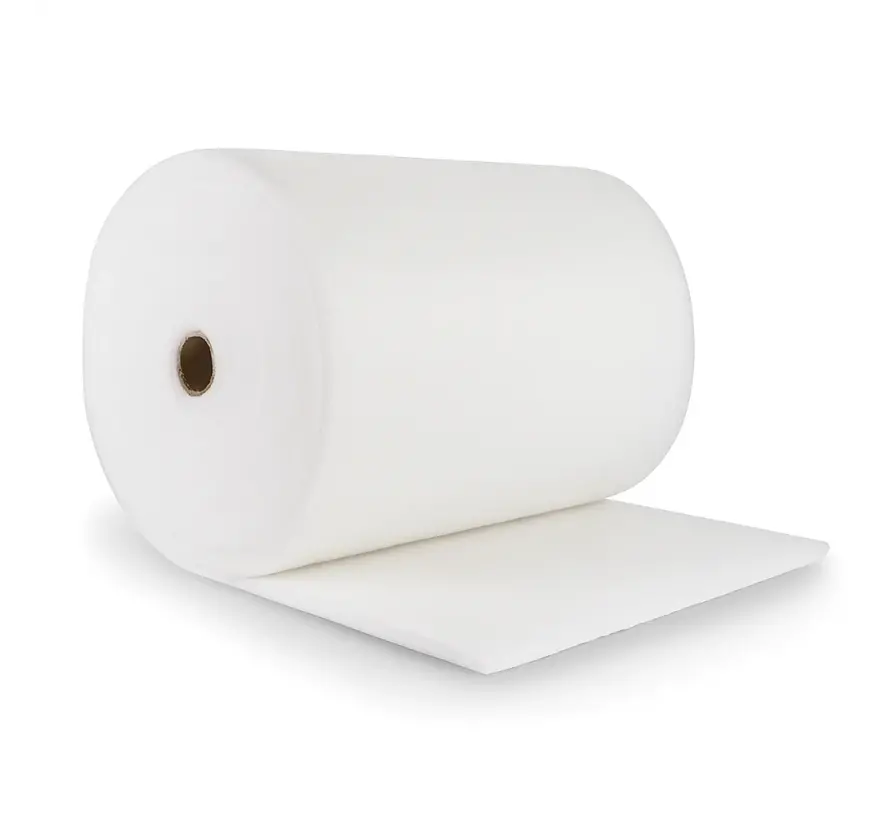

Filter cloth M5- ePM10 - 20 mm - in various sizes
Filter cloth M5- ePM10 - 20 mm
Roll size: 1000 x 1000 mm. - Nominal thickness: 20 mm.
Reel size: 1000 x 2000 mm. - nominal thickness: 20mm.
Roll size: 1 x 20 metres, - nominal thickness: 20mm.
Do you need customised solutions? We are happy to provide a customised quotation without obligation.
Send your request to: [email protected]
Air filtration medium designed for fine filtration of air intake in general ventilation and air treatment systems where a higher degree of cleanliness is required. Very effective when used as a pre-filter in a multi-stage filter bank, as well as a diffusion ceiling filter in industrial spray booths.
Is thermally bonded, extra reinforced and manufactured using progressive multilayer technology to ensure high dust holding capacity with the lowest pressure drop and is therefore extremely cost-effective with a long filter life. The clean air side is smoothed and printed for easy identification to ensure correct installation.
- Average arrestance (acc.EN 779) 97%
- Initial efficiency (dust spot) 22%
- Average efficiency (dust spot) 51%
- Air velocity 0.25 m/s
- Nominal air flow (m³/h/m² 900
- Initial pressure drop 15 Pa
- Final pressure drop 450 Pa
- Dust on tested final 330 g/m²
- Filtrair migration class R3
- Class according to en 779 F5
- Temp. resistance, constant up to 100° C
- Temp. short peaks up to 120° C
- Nominal thickness 20 mm
- Relative humidity up to 100%
- Recyclable/washable NO
